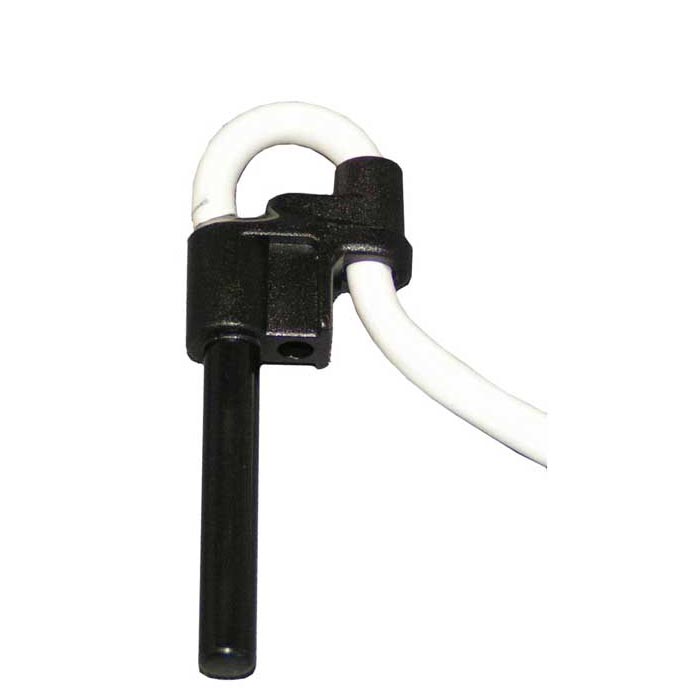

Elster Honeywell V100 T-Probe
Reed Switch Pulse Probe for use with Elster V100 Water Meters.
- The T110 Pulse probe is fitted with a 100Ω series resistor to protect the reed switch from power surges and is usually provided with a 5 metre length of cable, terminating in a sealed flying lead.
- For ‘TL2’ variant, the RED and BLUE cores are the volt free pair. The loop-back is across the BLACK and YELLOW cores. These connections are not otherwise polarity sensitive.
- The reed switch assembly is rated at 50 Vdc maximum working.
- The duty cycle of the switch closure is typically 70% on, 30% off.
