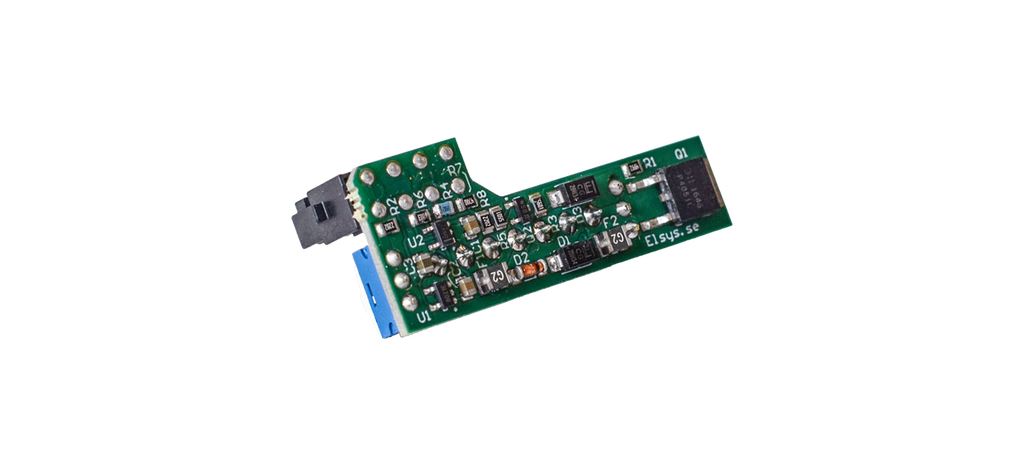

Elsys EXT Module
When the ELT EXT Module is installed, it lets the ELT2 be externally powered and control external sensors such as lightning or actuators/relays. It can also be set to output 0-10V voltage.
- Connection for external power On/Off output
- 0 – 10 V output
- General purpose input
- Fits inside the ELT-2 box
- Powers the ELT-2
- Switching between functions are done with
- jumpers.
Specifications
Input Voltage | 5 – 24 V DC |
On/Off output | Max 0.7 A |
0 - 10 V output | Max 5 mA |
Input can be scaled to allow up to 50 V
