Elsys ADC Module

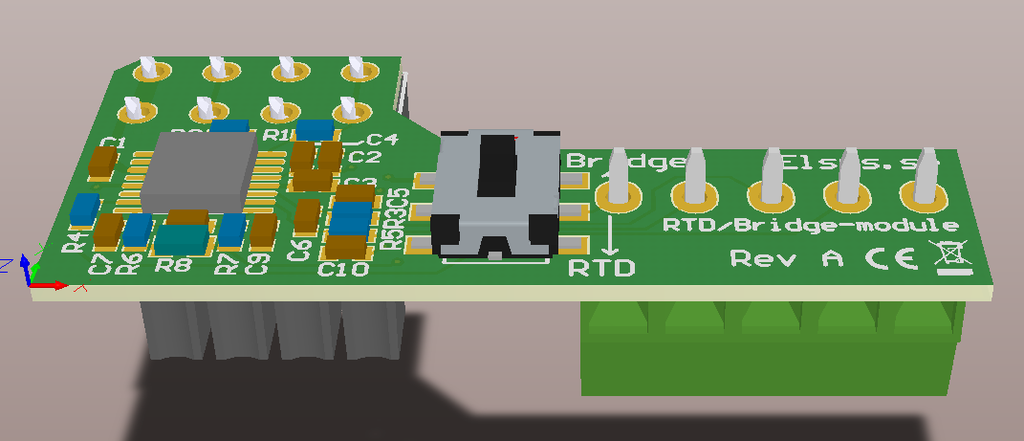

ELT ADC Module fits inside the ELT2 and is intended for connecting PT1000 platinum sensors or to be used as a general-purpose bridge amplifier.
- Easy use with PT-1000
- (RTD platinum sensor)
- 2- or 4-wire connection
- Measures -200 to 790 °C
- General high resolution bridge amplifier
- Fits inside the ELT-2 box
- Powered by the ELT-2 internal battery
- Very low energy consumtion
- Terminal block for easy connection
Specifications
Accuracy (RTD) | ± 0.1 °C (-40 to 200°C) + sensor deviation. ± 0.5 °C (full span) + sensor deviation |
